Jbod 24G SAS4 新品备忘

78 /108 EXPENDER(BMC) debug模式进入方法

Change jumper to debug mode

Debug mode setting : J2 : [2,3] close ; J5 [2,3] close ; J3 with 3 pin cable [ brown, black, red]

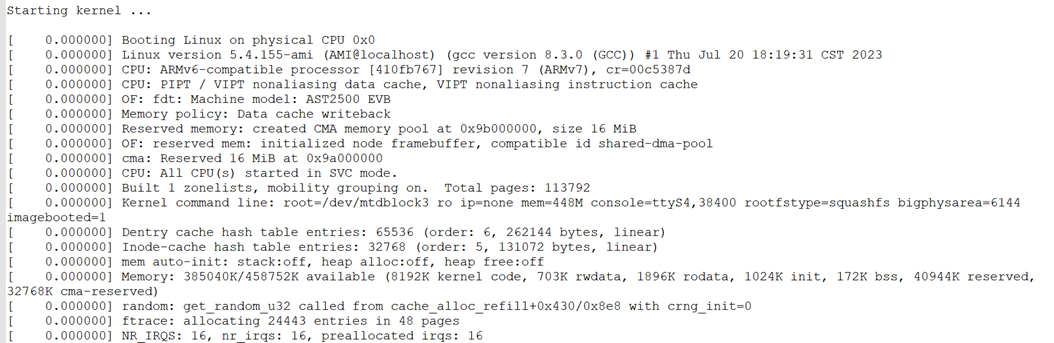

Connect the screen to the computer using terminal software, the baud rate is 38400

JBOD主機不開機的情況下,minicom登錄

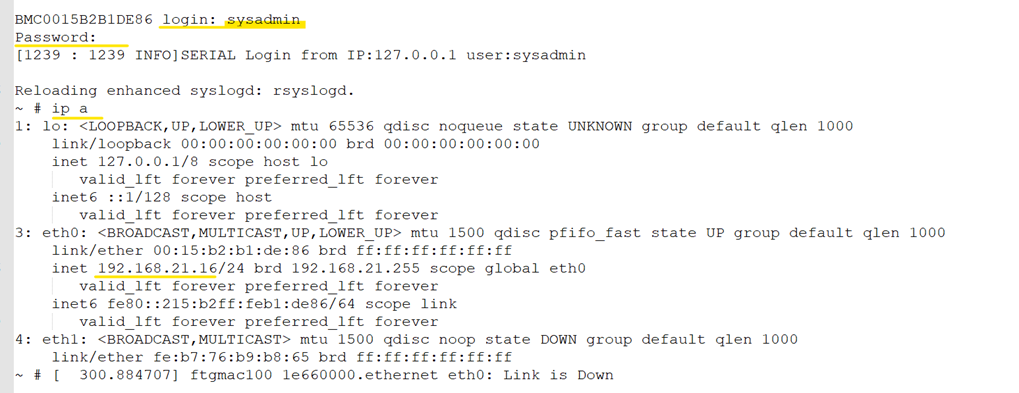

注意登录名及密码:The account is "sysadmin" and the password is "superuser"


BMC_Firmware _Update.pdf
