24G 78/108 Jbod debug模式刷寫

hub debug 刷fw/mfg

跳線更改見附件

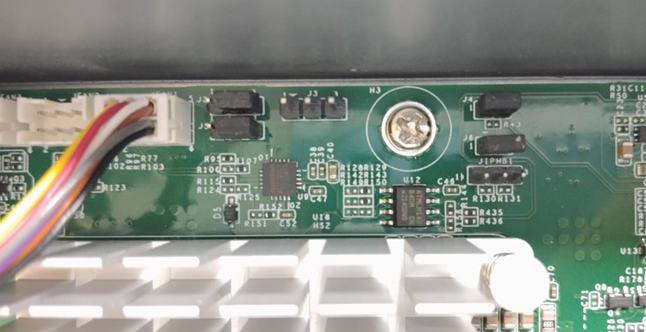

Console mode 需要調整jumper跟cable位置

Jumper: J6 pin [1, 2] close

g4Xflash命令

./g4Xrecovery.x86_64 -sdb /dev/ttyS0 erase -f -s

./g4Xrecovery.x86_64 -sdb /dev/ttyS0 dl -f fw4A5_v1.24.5.52 -s

./g4Xrecovery.x86_64 -sdb /dev/ttyS0 dl -c mfg4A5.0_4U78_4U108_v1.5.0.51.bin -s

./g4Xrecovery_x64.exe -sdb com3 list

# lsscsi -g|grep enc

###Show the device for AIC Expander Controller (canister)

# sg_map -i

/dev/sg2 AIC 24G 4U108Hub 1830

###DISK031(edge1, 24 bays)"Make edge1 visable"

#sg_ses --descriptor=Disk031 --set=2:5:1 /dev/sgX (hub=sgX)

###DISK055(edge2, 24 bays) "Make edge2 visable"

#sg_ses --descriptor=Disk055 --set=2:5:1 /dev/sgX (hub=sgX)

power on/off diskdriver

#sg_ses --descriptor=DiskPowerSupply --set=3:5:1 /dev/sg4

#sg_ses --descriptor=DiskPowerSupply --set=3:5:1 /dev/sg5

###DISK031(edge1, 24 bays)"Make edge1 invisable"

#sg_ses --descriptor=Disk031 --set=3:7:1 /dev/sgX (hub=sgX)

###DISK055(edge2, 24 bays) "Make edge2 iinvisable"

#sg_ses --descriptor=Disk055 --set=3:7:1 /dev/sgX (hub=sgX)

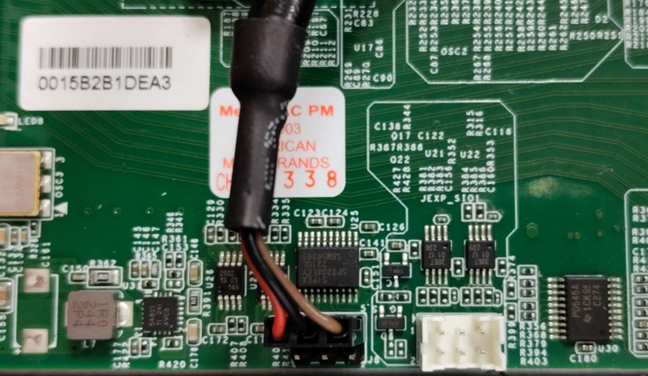

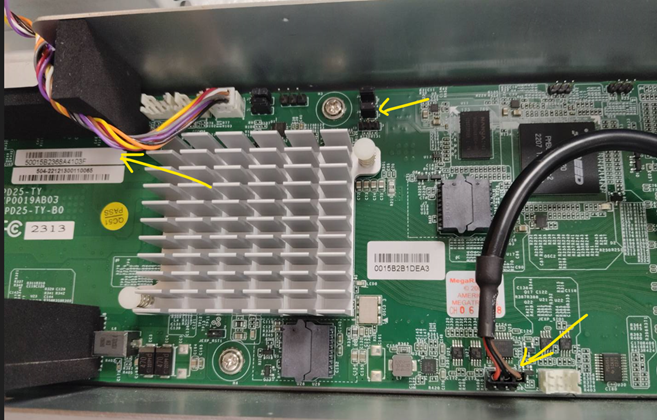

老款78/108 hub改consol/debug口跳線及數據線狀態
